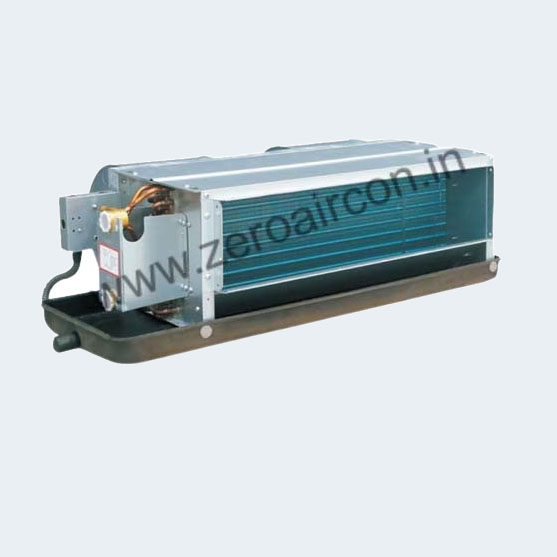

Ceiling Concealed Fan Coil Unit

Ceiling Concealed Fan Coil Unit

Ceiling Concealed Fan Coil Unit

  • 1. High-efficiency Pipe coil: Special pipe coil design to promote the mixing of cold and heat air, which can improve the heat exchange efficiency and save the operating cost.
  • 2. Top Plate: Made of high quality galvanized steel sheet, the top plate has a longer using life and can help to isolate the air flow on the top of the cooling coil.
  • 3. Pipe Connection: Left or right pipe connection mode
  • 4. Electric Motor: Using brand high-precision ball bearing, it has a longer using life and saves operating and maintenance cost.
  • 5. Centrifugal Fan: Ultra-quiet centrifugal fan has features of sufficient air volume, uniform flow and high efficiency
  • 6. Drip Tray: High strength and anti-corrosion drip tray with good insulation performance and long using life.

3-Row Fan Coil Unit (Midea)

MODEL MKT3-300G12c MKT3-400G12c MKT3-500G12c MKT3-600G12c MKT3-800G12c MKT3-1000G12c MKT3-1200G12c
Airflow (H/M/L)
CMH		 510/385/255 680/640/425 850/640/425 1020/765/510 1360/1020/680 1700/1275/850 2040/1530/1020
Cooling Capacity
kW		 3.1 4 4.6 5.8 8.2 9 11
Heating Capacity
kW		 5.3 6.8 7.9 9.8 13.6 16 20.1
Noise Level (H/M/L)
(NC)		 32/29/23 33/30/24 36/32/26 38/34/28 39/35/29 41/37/31 42/38/32
External Static Pressure
Pa		 12 12 12 12 12 12 12
Water Flow
m³/h		 0.53 0.69 0.79 0.99 1.41 1.55 1.89
Water Pressure Drop
kPa		 26 18 24 36 39 36 40
Power Supply
V/Ph/Hz		 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50
Power Input
W		 53 66 87 100 145 180 210
Dimensions (WxHxD)
mm		 841x241x522 941x241x522 941x241x522 1161x241x522 1461x241x522 1566x241x522 1856x241x522
Net Weight
kg		 17 20.2 20.2 23 31.9 34.4 39.5

3-Row Fan Coil Unit (Midea)

MODEL MKT3-300G12c MKT3-400G12c MKT3-500G12c MKT3-600G12c MKT3-800G12c MKT3-1000G12c MKT3-1200G12c
Airflow (H/M/L)
CMH		 510/385/255 680/640/425 850/640/425 1020/765/510 1360/1020/680 1700/1275/850 2040/1530/1020
Cooling Capacity
kW		 3.1 4 4.6 5.8 8.2 9 11
Heating Capacity
kW		 5.3 6.8 7.9 9.8 13.6 16 20.1
Noise Level (H/M/L)
(NC)		 32/29/23 33/30/24 36/32/26 38/34/28 39/35/29 41/37/31 42/38/32
External Static Pressure
Pa		 12 12 12 12 12 12 12
Water Flow
m³/h		 0.53 0.69 0.79 0.99 1.41 1.55 1.89
Water Pressure Drop
kPa		 26 18 24 36 39 36 40
Power Supply
V/Ph/Hz		 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50
Power Input
W		 53 66 87 100 145 180 210
Dimensions (WxHxD)
mm		 841x241x522 941x241x522 941x241x522 1161x241x522 1461x241x522 1566x241x522 1856x241x522
Net Weight
kg		 17 20.2 20.2 23 31.9 34.4 39.5
